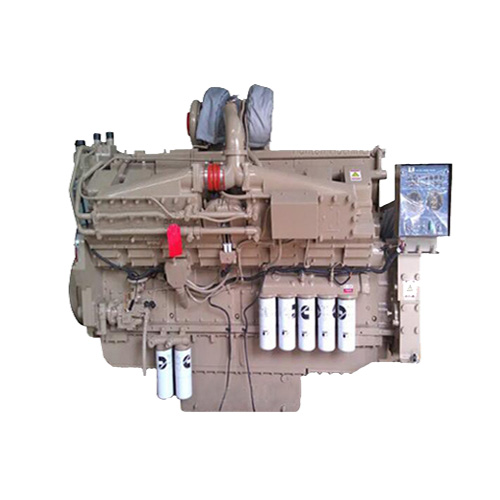

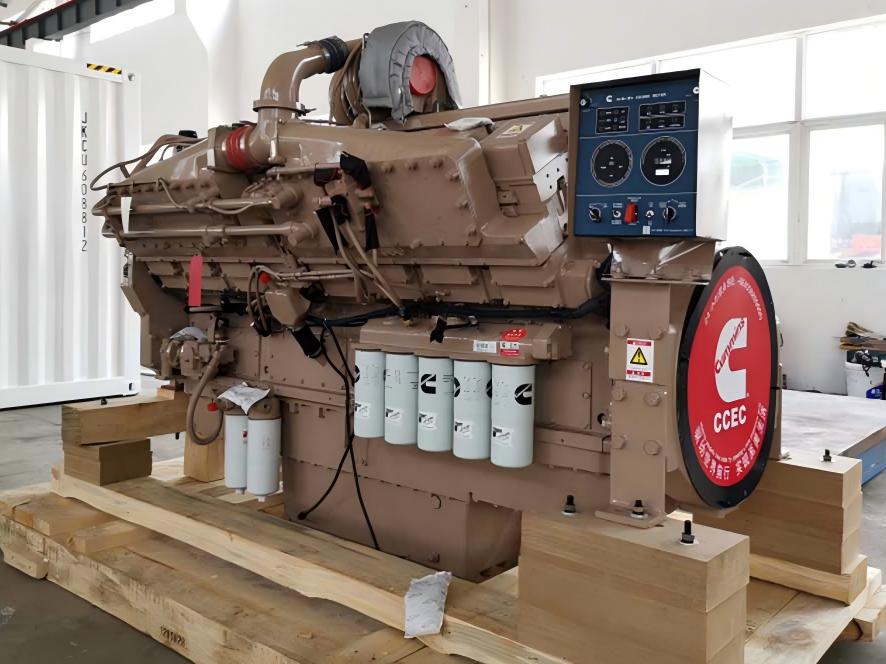

Cummins KTA50 Series Marine Diesel Engine

    Cummins KTA50-M V16 marine diesel engine delivering 1200–1800HP of flagship power with 50L displacement for the most demanding marine applications.

    ●
    1200HP to 1800HP Output Maximum power range from 1200HP to 1800HP at 1500–2200RPM for flagship marine vessels.
    ●
    V16 50L Displacement Massive 50L V16 engine with 159×159mm bore×stroke for unparalleled power output.
    ●
    Turbocharged & Intercooled Advanced turbocharged with intercooler system optimizes air intake for peak efficiency.
    ●
    Direct Injection Power Direct injection pump with 210g/kW.h fuel consumption for efficient power delivery.
Request Quote Contact Us

Product Description

The Cummins KTA50 Series marine diesel engine stands out with its powerful V16 cylinder configuration and a massive 50L displacement, delivering rated power from 1200hp to 1800hp at speeds ranging from 1500RPM to 2200RPM. It incorporates a turbocharged and intercooled aspiration system to maximize combustion efficiency and power output. With a direct injection fuel system and water-cooled cooling method, it ensures reliable performance even under the most demanding marine conditions. Its electric start feature and robust build make it an ideal choice for heavy-duty marine applications.

Technical Specifications

Engine Model Cummins KTA50-M engine
Rated Power 1200-1800hp
Rated Speed 1500RPM-2200RPM
Engine Type V16 Cylinders
Bore*Stroke(mm) 159mm*159mm
Displacement 50L
Peak Torque 410N.m
Fuel Consumption 210g/kw.h
Aspiration Type Turbocharged &Intercooler
Cooling Method Water Cooled
Start Type Electric Start
Fuel System Direct Injection Pump
Dimension 2618mm * 1466mm * 1931mm
Weight 5178kg
