Advance Marine Gearbox: Multi-Series Model Classification Display

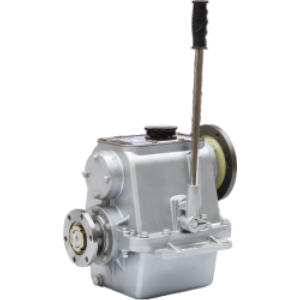

06

MAX.11.3 HP at 2100RPM

Engine speed: 1000~2100 RPM

Ratio	2.52	3.05	3.50
Rate(hp/rpm)	0.005

L×W×H: 350×316×482 mm Net weight: 58 kg

Options/Comments: Mechanical-joint clutch Bell Housing: No

Centre distance: 124 mm

Recommend engine: YANMAR TS130; TS155; HATZ E786 ···

Note: The "Rate" is based on rubber wheel coupling.

Rated propeller thrust: 1.8KN

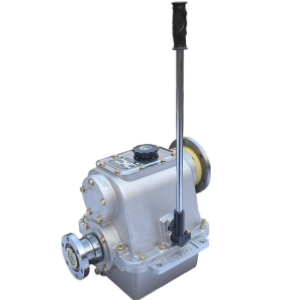

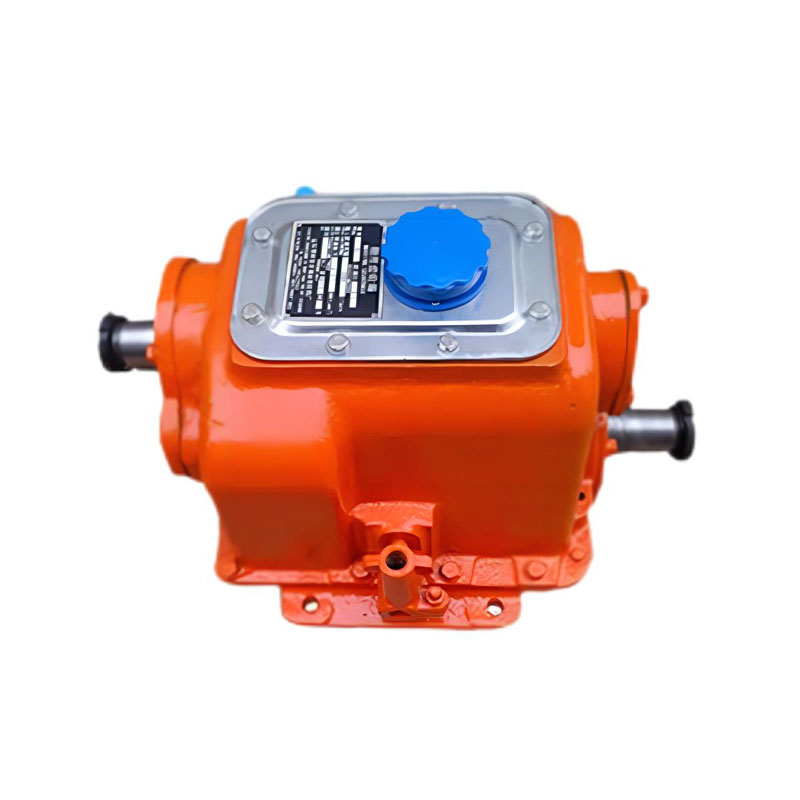

16A

MAX.32.2 HP at 2000RPM

Engine speed: 1000~2000 RPM

Ratio	2.07	2.48	2.95	3.35	3.83
Rate(hp/rpm)	0.016

L×W×H: 422×325×563 mm Net weight: 80kg

Options/Comments: Mechanical-joint clutch Bell Housing: No

Centre distance: 135 mm

Recommend engine: MWM D226-2; HATZ 3M31 ···

Note: The "Rate" is based on rubber wheel coupling.

Rated propeller thrust: 3.5KN

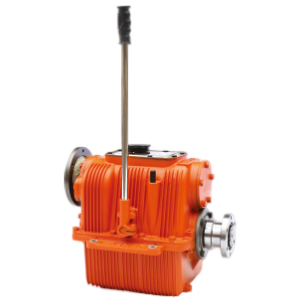

26

MAX.66.7 HP at 2500RPM

Engine speed: 1000~2500 RPM

Ratio	2.50	3.00	3.50	4.00
Rate(hp/rpm)	0.027		0.025	0.024

L×W×H: 473.5×365×830mm Net weight: 104kg

Options/Comments: Mechanical-joint clutch Bell Housing: No

Centre distance: 135 mm

Recommend engine: TD226B-3C ···

Note: The "Rate" is based on rubber wheel coupling.

Rated propeller thrust: 5.0KN

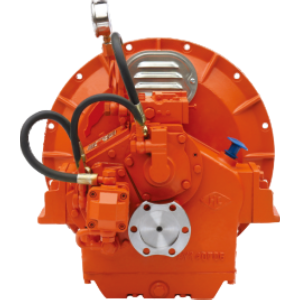

MA100A

MAX.36.2 HP at 3000RPM

Engine speed: 1500~3000 RPM

Ratio	1.60	2.00	2.55	3.11	3.59	3.88
Rate(hp/rpm)	0.012		0.0094		0.0080

L×W×H: 236×390×420 mm Net weight: 76 kg

Bell housing: SAE 3,4,5 Flange: SAE 7.5, 10, 11.5

Options/Comments: PTO device available; Mechanical remote operation

Centre distance: 100 mm

Recommend engine: ISUZU UM02AB1; YAMAHA Me125 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 3.0KN

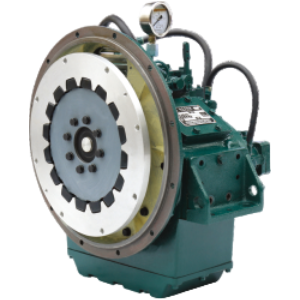

MA125A

MAX.80.5 HP at 3000RPM

Engine speed: 1500~3000 RPM

Ratio	2.03	2.46	3.04	3.57	4.05	4.39	4.70
Rate(hp/rpm)	0.027	0.024	0.021	0.019	0.0176	0.0149

L×W×H: 291×454×485mm Net weight: 112 kg

Bell housing: SAE 2,3,4 Flange: SAE 10, 11.5

Options/Comments: PTO device available; Mechanical remote operation

Centre distance: 125 mm

Recommend engine: ISUZU UM02AB1; YAMAHA Me125 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 5.5KN

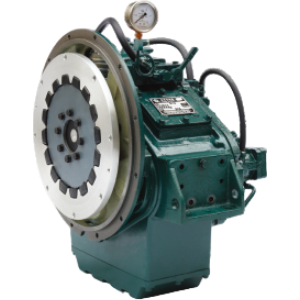

MA142A

MAX.100.6 HP at 2500RPM

Engine speed: 1500~2500 RPM

Ratio	1.97	2.52	3.03	3.54	3.95	4.50	5.06	5.47
Rate(hp/rpm)	0.040		0.035	0.031	0.026	0.025	0.021	0.017

L×W×H: 308×520×540mm Net weight: 144kg

Bell housing: SAE 2,3 Flange: SAE 10, 11.5

Options/Comments: PTO device available; Mechanical remote operation

Centre distance: 142 mm

Recommend engine: CUMMINS 4B3.9-M; MWM D226-4 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 8.5KN

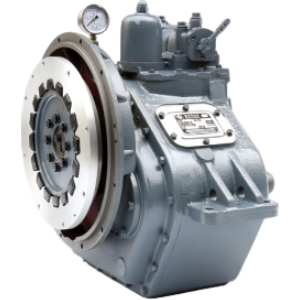

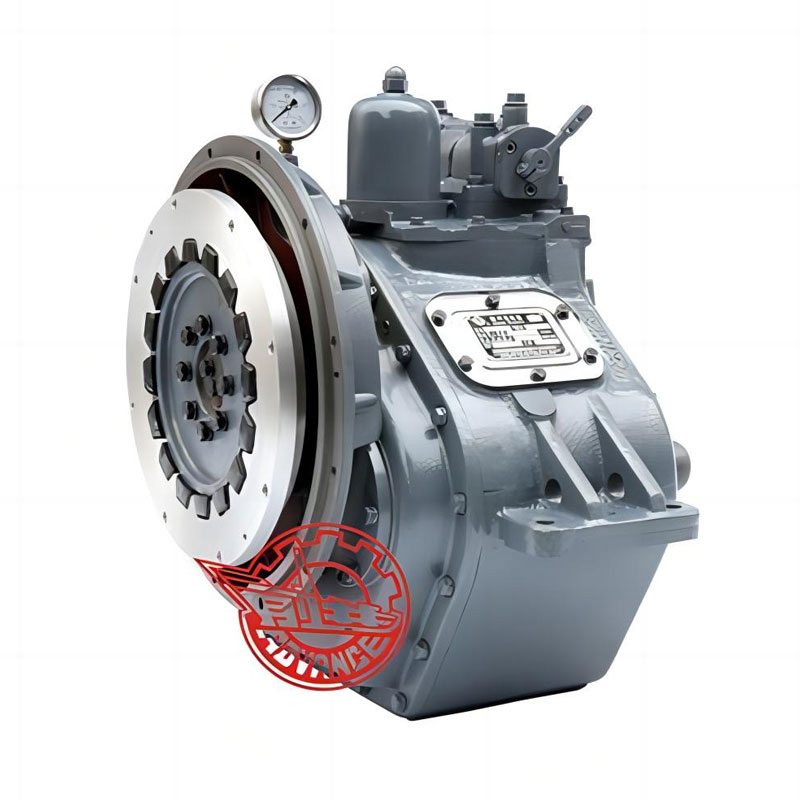

40A

MAX.78.9 HP at 2000RPM

Engine speed: 750~2000 RPM

Ratio	2.07	2.96	3.44	3.83
Rate(hp/rpm)	0.039		0.032	0.027

L×W×H: 490×670×620 mm Net weight: 225 kg

Bell housing: SAE1, 2, 3 Flange: SAE 11.5, 14

Options/Comments: Mechanical remote operation

Centre distance: 142 mm

Recommend engine: YAMAHA ME400L; BAUDOUIN 4D106 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 8.8KN

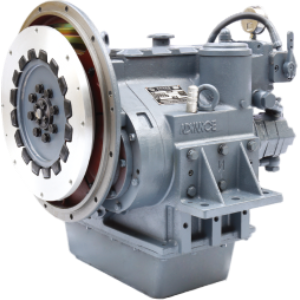

MB170

MAX.130.8 HP at 2500RPM

Engine speed: 1000~2500 RPM

Ratio	1.97	2.52	3.04	3.54	3.96	4.50	5.06	5.47	5.88
Rate(hp/rpm)	0.052			0.042			0.037

L×W×H: 485×610×656 mm Net weight: 240 kg

Bell housing: SAE 1,2,3 Flange: 10, 11.5, 14

Options/Comments: Mechanical or electrical remote control

Centre distance: 170 mm

Recommend engine: MWM D226-6; YAMAHA ME400L ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 16KN

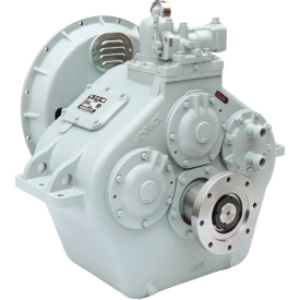

120B

MAX.212 HP at 1800RPM

Engine speed: 750~1800 RPM

Ratio	2.03	2.81	3.73
Rate(hp/rpm)	0.118		0.059

L×W×H: 605×744×770 mm Net weight: 400 kg

Bell housing: SAE1 Flange: SAE14

Options/Comments: Push-and-pull flexible shaft, electrical remote control

Centre distance: 190 mm

Recommend engine: NT-855-M240; CAT3208TA ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 25KN

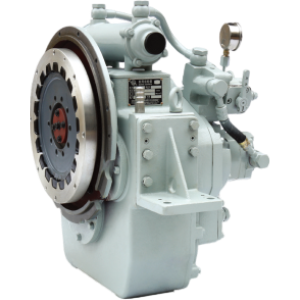

120C

MAX.335.3 HP at 2500RPM

Engine speed: 1000~2500 RPM

Ratio	1.36	1.48	1.61	1.94	2.45	2.96	3.35
Rate(hp/rpm)	0.134					0.121	0.107

L×W×H: 432×440×650 mm Net weight: 225 kg

Bell housing: SAE1, 2, 3 Flange: SAE11.5, 14

Options/Comments: Mechanical or electrical remote control

Centre distance: 180 mm

Recommend engine: NT-855-M240; CAT3208TA ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 25KN

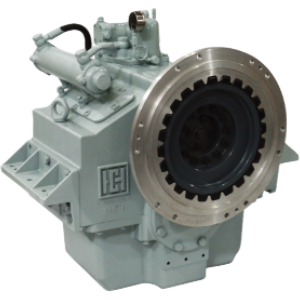

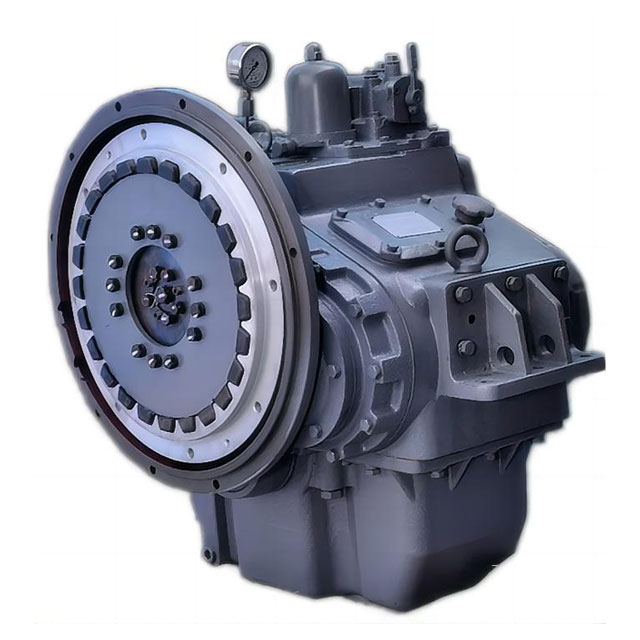

135A

MAX.265 HP at 2000RPM

Engine speed: 750~2000 RPM

Ratio	2.03	2.59	3.04	3.62	4.11	4.65	5.06	5.47	5.81
Rate(hp/rpm)	0.133					0.125	0.118	0.103	0.094

L×W×H: 578×792×830 mm Net weight: 470 kg

Bell housing: SAE 1 Flange: SAE 14

Options/Comments: Mechanical or electrical remote control

Centre distance: 225 mm

Recommend engine: NT-855-M240; CAT 3406 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 29.4KN

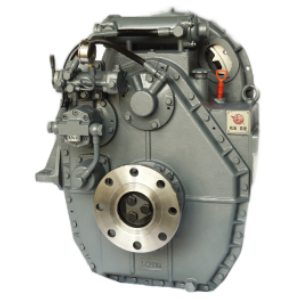

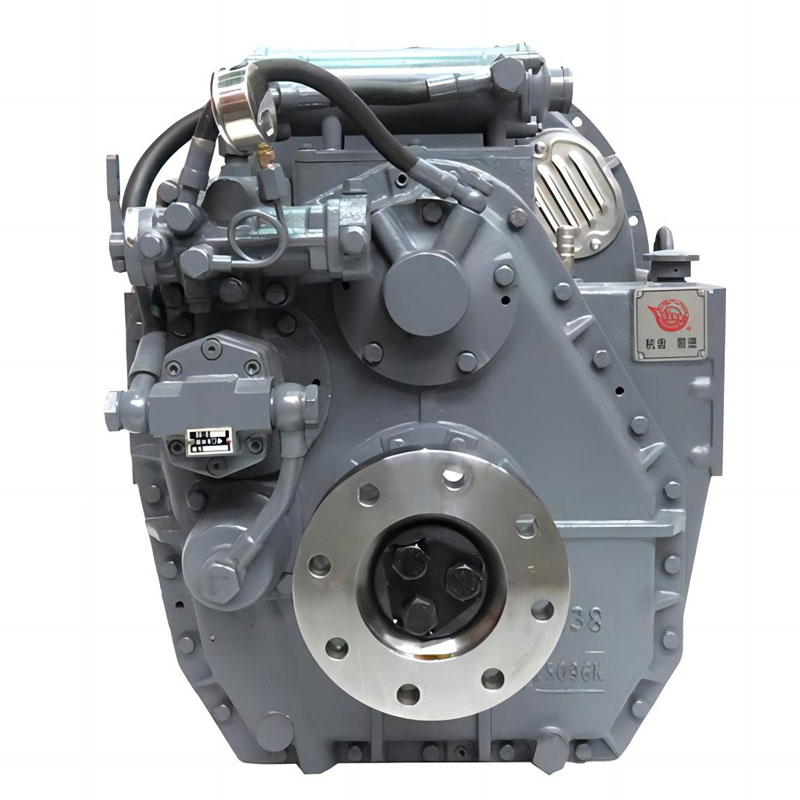

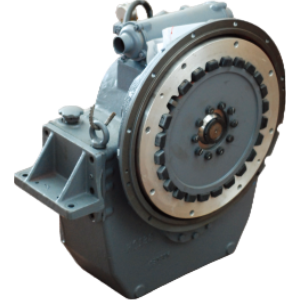

HC138

MAX.368 HP at 2500RPM

Engine speed: 1000~2500 RPM

Ratio	2.00	2.52	3.00	3.57	4.05	4.45
Rate(hp/rpm)	0.147

L×W×H: 520×792×760 mm Net weight: 360 kg

Bell housing: SAE 1, 2, 3 Flange: SAE 11.5, 14

Options/Comments: Pneumatic (recommended) or electrical remote control

Centre distance: 225 mm

Recommend engine: 6135Ca, NT-855-M240 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 30KN

HCD138

MAX.368 HP at 2500RPM

Engine speed: 1000~2500 RPM

Ratio	5.05	5.63	6.06	6.47
Rate(hp/rpm)	0.147		0.133	0.125

L×W×H: 494×800×870 mm Net weight: 415 kg

Bell housing: SAE 1,2 Flange: SAE 11.5, 14

Options/Comments: Pneumatic (recommended) or electrical remote control

Centre distance: 296 mm

Recommend engine: 6135Ca, NT-855-M240 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 40KN

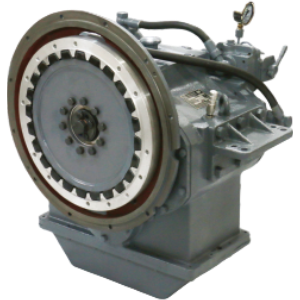

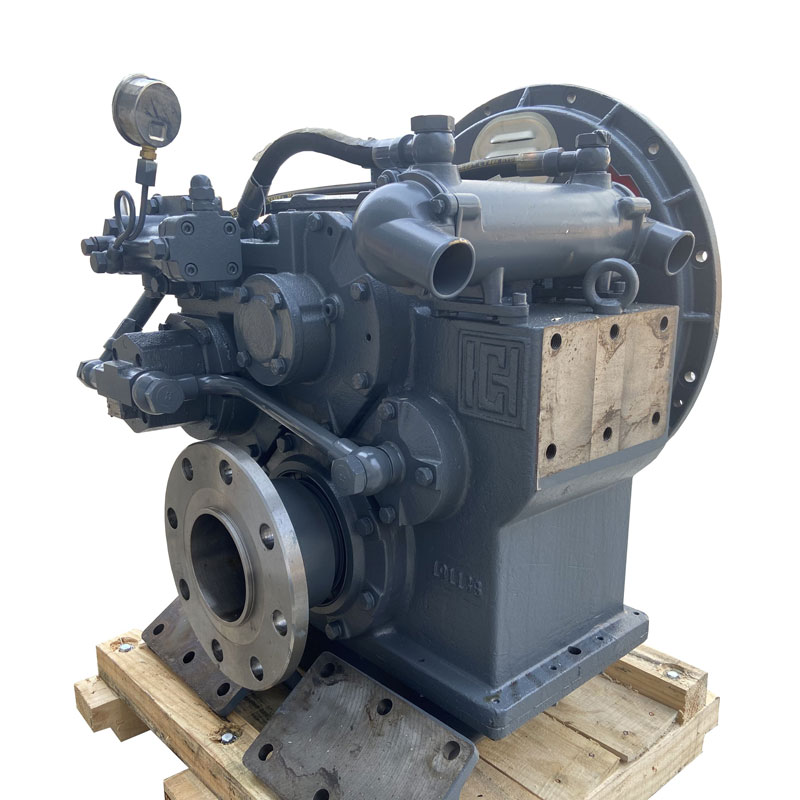

MB242

MAX.345.3 HP at 2500RPM

Engine speed: 1000~2500 RPM

Ratio	2.00	2.54	3.04	3.52	3.95	4.53	5.12	5.56	5.88
Rate(hp/rpm)	0.138						0.136	0.128	0.100

L×W×H: 422×774×763 mm Net weight: 385 kg

Bell housing: SAE 1, 2, 3 Flange: 11.5, 14

Options/Comments: Mechanical or electrical remote control

Centre distance: 242 mm

Recommend engine: NT-855-M240; CAT 3406 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 30KN

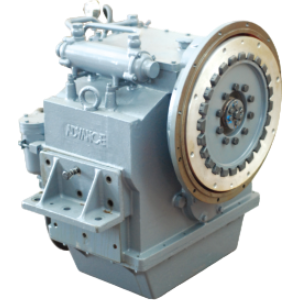

MB270A

MAX.493 HP at 2500RPM

Engine speed: 1000~2500 RPM

Ratio	3.00	4.05	4.53	5.12	5.50	5.95	6.39	6.82
Rate(hp/rpm)	0.197				0.180	0.148		0.118

L×W×H: 594×810×868 mm Net weight: 675 kg

Bell housing: SAE0, 1 Flange: SAE 14, 16, 18

Options/Comments: PTO device available; Mechanical or electrical remote control

Centre distance: 270 mm

Recommend engine: NTA-855-M400; CAT 3406TA ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 39.2KN

300

MAX.862 HP at 2500RPM

Engine speed: 750~2500 RPM

Ratio	1.87	2.04	2.54	3.00	3.35	3.53	4.10	4.47	4.61	4.94	5.44
Rate(hp/rpm)	0.345		0.326	0.296			0.247		0.197	0.168

L×W×H: 786×930×864 mm Net weight: 740 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: PTO device available (except ratio 5.44:1); Mechanical or electrical remote control

Centre distance: 264 mm

Recommend engine: KTA19-M600; TBD234V12 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 50KN

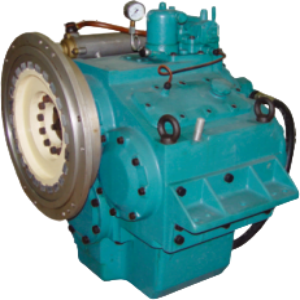

HC300

MAX.862 HP at 2500RPM

Engine speed: 750~2500 RPM

Ratio	1.50	1.87	2.04	2.23	2.54	3.00	3.53	4.10	4.47	4.61	4.94	5.44
Rate(hp/rpm)	0.345							0.268		0.247	0.197	0.174

L×W×H: 680×930×880mm Net weight: 680 kg

Bell housing: SAE0, 1 Flange: SAE14, 16, 18

Options/Comments: Mechanical or electrical remote control

Centre distance: 264 mm

Recommend engine: KTA19-M600; TBD234V12

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 50KN

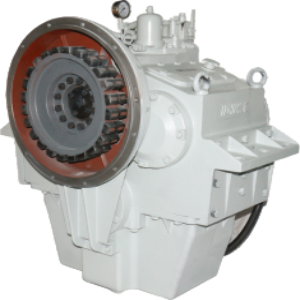

D300A

MAX.862 HP at 2500RPM

Engine speed: 1000~2500 RPM

Ratio	4.00	4.48	5.05	5.52	5.90	6.56	7.06	7.63
Rate(hp/rpm)	0.345		0.326	0.296	0.247		0.197	0.168

L×W×H: 786×1010×1041mm Net weight: 880 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: PTO device available (except ratio 7.63:1); Mechanical or electrical remote control

Centre distance: 355 mm

Recommend engine: KTA19-M600; TBD234V12 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 60KN

T300

MAX.750 HP at 2300RPM

Engine speed: 1000~2300 RPM

Ratio	4.73	4.95	5.51	6.03	6.65	7.04	7.54	8.02	8.47
Rate(hp/rpm)	0.326					0.296			0.268

L×W×H: 772×980×1106 mm Net weight: 1120 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: PTO device available; Mechanical or electrical remote control

Centre distance: 355 mm

Recommend engine: KTA19-M600; CAT3412T; TBD234V12 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 70KN

T300/1

MAX.605 HP at 2300RPM

Engine speed: 1000~2300 RPM

Ratio	8.94	9.45
Rate(hp/rpm)	0.263

L×W×H: 772×980×1106 mm Net weight: 1120 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: Mechanical or electrical remote control

Centre distance: 355 mm

Recommend engine: KTA19-M600; CAT3412T ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 70KN

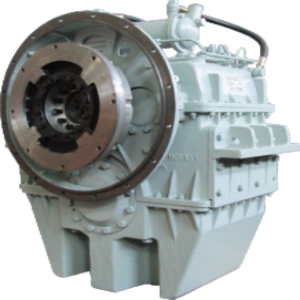

HCG403

MAX.990 HP at 2300RPM

Engine speed: 1000~2300 RPM

Ratio	6.21	6.40	7.01	7.45	7.92	8.43	8.97	9.32	9.94	10.43	10.87	11.61
Rate(hp/rpm)	0.444	0.43	0.393	0.37	0.347	0.327	0.307	0.296	0.278	0.264	0.253	0.237

L×W×H: 815.5×920×1200 mm Net weight: 1000 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: Push-and-pull flexible shaft, electrically, pneumatically

Centre distance: 355 mm

Recommend engine: KTA19-M600; CAT3412T ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 82KN

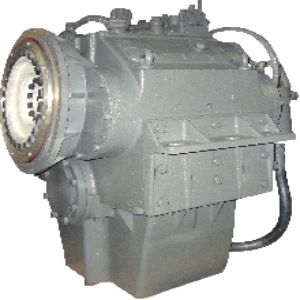

J300

MAX.938 HP at 2500RPM

Engine speed: 750~2500 RPM

Ratio	2.04	2.54	3.0	3.47	3.95
Rate(hp/rpm)	0.375				0.344

L×W×H: 786×930×864 mm Net weight: 740 kg

Bell housing: SAE 0, 1 Flange: SAE 18, 16, 14

Options/Comments: Push-and-pull flexible shaft, electrically

Centre distance: 264 mm

Recommend engine: KTA19-M600; CAT3412T ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 60KN

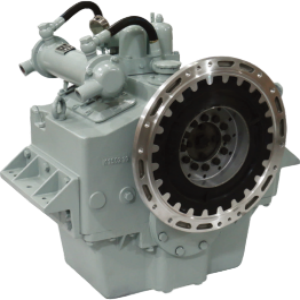

HC400

MAX.799 HP at 1800RPM

Engine speed: 1000~1800 RPM

Ratio	1.50	1.77	2.04	2.50	2.86	3.00	3.25	3.33	3.42	4.06	4.61	4.94
Rate(hp/rpm)	0.444									0.373		0.254

L×W×H: 641×1010×890 mm Net weight: 820 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: Mechanical or electrical remote control

Centre distance: 264 mm

Recommend engine: CAT3412TA; TBD604BL6 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 82KN

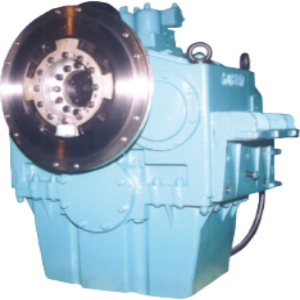

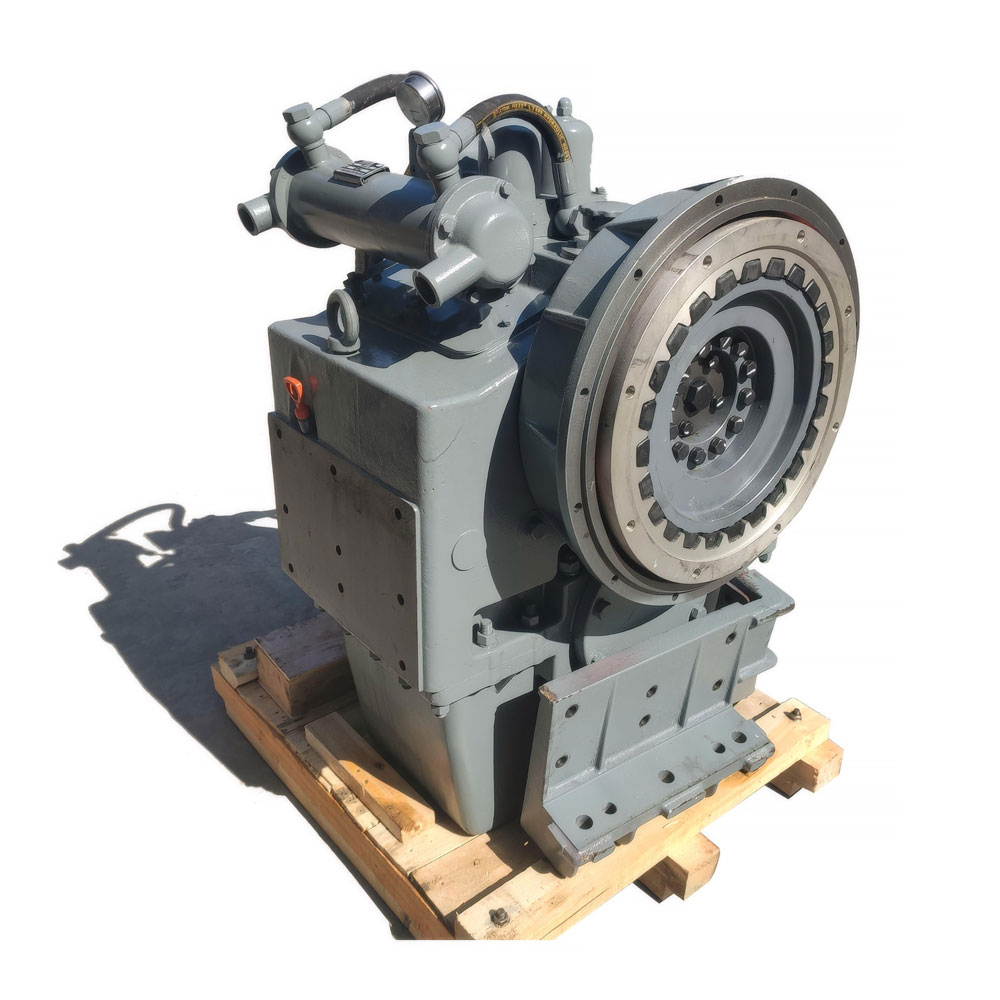

HCD400A

MAX.799 HP at 1800RPM

Engine speed: 1000~1800 RPM

Ratio	3.96	4.33	4.43	4.70	5.00	5.53	5.71	5.89
Rate(hp/rpm)	0.444					0.392		0.364

L×W×H: 641×1010×988 mm Net weight: 1100 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: PTO device available; Mechanical or electrical remote control

Centre distance: 355 mm

Recommend engine: KT38-M800; TBD604BL6 ···

Note: The "Rate" is based on toothed rubber blocks coupling, if use
high-flexible coupling, "Rate" will rise 8%

Rated propeller thrust: 82KN

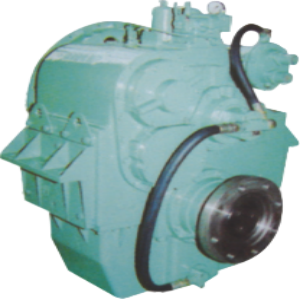

HCT400A

MAX.932 HP at 2100RPM

Engine speed: 1000~2100 RPM

Ratio	6.09	6.49	6.93	7.42	7.96	8.40	9.00	9.47
Rate(hp/rpm)	0.444		0.414	0.385	0.355	0.326

L×W×H: 784×992×1130 mm Net weight: 1450 kg

Bell housing: SAE 0, 1 Flange: 14, 16, 18

Options/Comments: PTO device available; Mechanical or electrical remote control

Centre distance: 375 mm

Recommend engine: KT38-M800; TBD604BL6; CAT3412TA ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 82KN

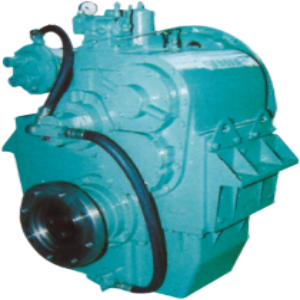

HCT400A/1

MAX.932 HP at 2100RPM

Engine speed: 1000~2100 RPM

Ratio	8.15	8.69	9.27	9.94	10.60	11.37	12.00	12.50	13.96
Rate(hp/rpm)	0.444		0.424	0.398	0.367	0.351	0.273

L×W×H: 869×1100×1275 mm Net weight: 1500 kg

Bell housing: SAE0, 1 Flange: SAE 14, 16, 18

Options/Comments: Mechanical or electrical remote control

Centre distance: 465 mm

Recommend engine: KTA38-M800; CAT3412TA; TBD604BL6 ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 120KN

HCT400/II

MAX.932 HP at 2100RPM

Engine speed: 1000~2100 RPM

Ratio	8.15	8.69	9.27	9.94	10.60	11.37	12.00	12.50	13.96
Rate(hp/rpm)	0.444		0.424	0.398	0.367	0.351	0.273

L×W×H: 869×920×1327 mm Net weight: 1500 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: Mechanical or electrical remote control

Centre distance: 465 mm

Recommend engine: KTA38-M800; CAT3412TA; TBD604BL6 ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 120KN

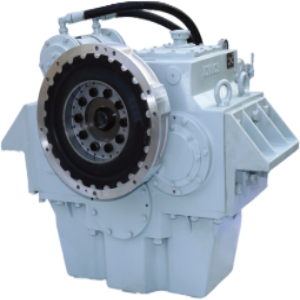

HC600A

MAX.1380 HP at 2100RPM

Engine speed: 1000~2100 RPM

Ratio	2.00	2.48	3.00	3.58	3.89
Rate(hp/rpm)	0.657

L×W×H: 745×1214×1126 mm Net weight: 1300 kg

Bell housing: SAE 00, 0, 1 Flange: SAE (14), 16, 18, 21

Options/Comments: Mechanical or electrical remote control

Centre distance: 320 mm

Recommend engine: KTA38-M1045; CAT3508B; TBD604BV8 ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 90KN

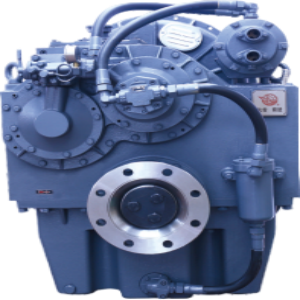

HCD600A

MAX.1380 HP at 2100RPM

Engine speed: 1000~2100 RPM

Ratio	4.18	4.43	4.70	5.00	5.44	5.71
Rate(hp/rpm)	0.657			0.603	0.577

L×W×H: 745×1214×1271 mm Net weight: 1550 kg

Bell housing: SAE 00, 0, 1 Flange: SAE (14), 16, 18, 21

Options/Comments: Mechanical or electrical remote control

Centre distance: 415 mm

Recommend engine: KTA38-M1045; CAT3508B; TBD604BV8 ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 90KN

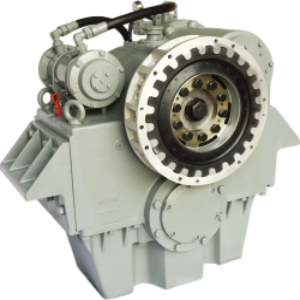

HCT600A

MAX.1267 HP at 2100RPM

Engine speed: 1000~2100 RPM

Ratio	6.06	6.49	6.97	7.51	8.04	8.66	9.35
Rate(hp/rpm)	0.603	0.562	0.523	0.487	0.453	0.421	0.390

L×W×H: 821×1214×1271mm Net weight: 1650 kg

Bell housing: SAE 00, 0 Flange: 16, 18, 21, (14)

Options/Comments: Mechanical or electrical remote control

Centre distance: 500 mm

Recommend engine: KTA38-M940; CAT3508TA; TBD234V16 ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 90KN

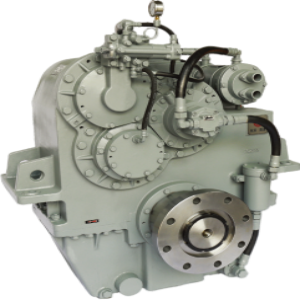

HCT600A/1

MAX.1242 HP at 2100RPM

Engine speed: 1000~2100 RPM

Ratio	7.04	7.69	8.23	8.82	9.47	10.10	10.80	11.65	12.57	13.64	14.44	15.91
Rate(hp/rpm)	0.591		0.532	0.503	0.473	0.444	0.365	0.345	0.274

L×W×H: 878×1224×1346 mm Net weight: 1700 kg

Bell housing: SAE 00, 0, 1 Flange: 16, 18, 21, (14)

Options/Comments: Mechanical or electrical remote control

Centre distance: 500 mm

Recommend engine: KTA38-M940; TBD234V16 ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 140KN

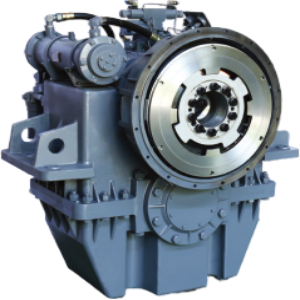

HCD800

MAX.1759 HP at 2100RPM

Engine speed: 600~2100 RPM

Ratio	3.00	3.43	3.96	4.17	4.39	4.90	5.47	5.89
Rate(hp/rpm)	0.837					0.788	0.738	0.69

L×W×H: 1056×1280×1341 mm Net weight: 2200 kg

Bell housing: SAE 00, 0 Flange: SAE 16, 18, 21

Options/Comments: Mechanical or electrical remote control

Centre distance: 450 mm

Recommend engine: 6190Z, C₈W6200, KAT38-M1 ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 110KN

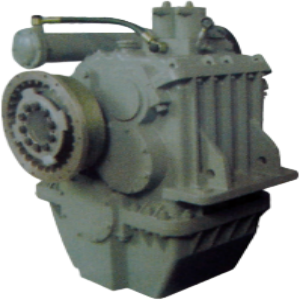

HCT800

MAX.1759 HP at 2100RPM

Engine speed: 600~2100 RPM

Ratio	4.95	5.57	5.68	5.93	6.43	6.86	7.33	7.84	8.40
Rate(hp/rpm)	0.837			0.788	0.733	0.691	0.644

L×W×H: 1056×1280×1425 mm Net weight: 1800 kg

Bell housing: SAE 00, 0 Flange: 18, 21

Options/Comments: Mechanical or electrical remote control

Centre distance: 450 mm

Recommend engine: KAT38-M ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 140KN

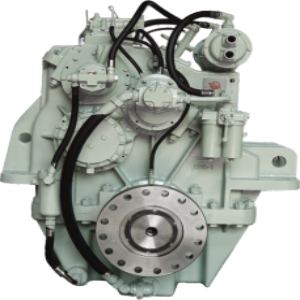

HCT800/1

MAX.1759 HP at 2100RPM

Engine speed: 600~2100 RPM

Ratio	8.01	8.39	9.00	9.47	10.10	10.80	11.50	12.20	12.80	13.50	14.00	15.00
Rate(hp/rpm)	0.837					0.788	0.733	0.691	0.644

L×W×H: 1152×1360×1557 mm Net weight: 3200 kg

Bell housing: SAE 00, 0 Flange: SAE 16, 18, 21

Options/Comments: Mechanical or electrical remote control

Centre distance: 582 mm

Recommend engine: 6190Z/Cz, Z8170C, KAT38-M1 ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 220KN

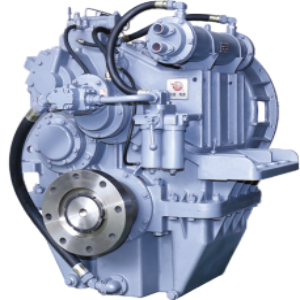

HCT800/2

MAX.1689 HP at 2100RPM

Engine speed: 600~2100 RPM

Ratio	11.52	12.21	12.97	14.08	14.48	14.88	15.48	15.76	16.72	17.77	18.94
Rate(hp/rpm)	0.804		0.741	0.736	0.697	0.674	0.658	0.620	0.583	0.512

L×W×H: 1190×1490×1707 mm Net weight: 3600 kg

Bell housing: SAE 0, 0 Flange: SAE 16, 18, 21

Options/Comments: Mechanical or electrical remote control

Centre distance: 666 mm

Recommend engine: 6190Z/Cz, Z8170C, KAT38-M1 ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 220KN

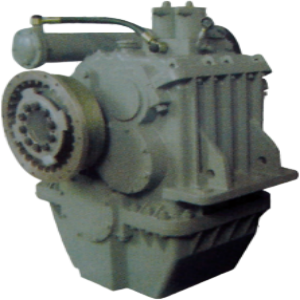

HCT800/3

MAX.1680 HP at 2100RPM

Engine speed: 600~2100 RPM

Ratio	16.56	17.95	20.19	21.94
Rate(hp/rpm)	0.801	0.738	0.658	0.555

L×W×H: 1235×1570×1789 mm Net weight: 4200 kg

Bell housing: SAE 00, 0 Flange: SAE 16, 18, 21

Options/Comments: Mechanical or electrical remote control

Centre distance: 736 mm

Recommend engine: KTA38-M2

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 240KN

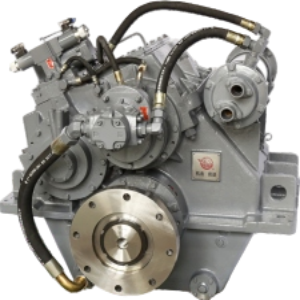

HC1000

MAX.2069 HP at 2100RPM

Engine speed: 600~2100 RPM

Ratio	2.00	2.17	2.50	2.64	3.04	3.48	3.59	4.06
Rate(hp/rpm)	0.985							0.872

L×W×H: 1082×1120×990mm Net weight: 1700 kg

Bell housing: SAE 00, 0 Flange: SAE 21

Options/Comments: Mechanical or electrical remote control

Centre distance: 335 mm

Recommend engine: CW6200ZC, 6210ZL ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 110KN

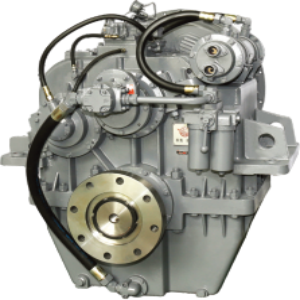

HCD1000

MAX.2069 HP at 2100RPM

Engine speed: 600~2100 RPM

Ratio	3.43	3.96	4.39	4.45	4.90	5.06	5.47	5.83
Rate(hp/rpm)	0.985					0.911		0.871

L×W×H: 1082×1280×1345 mm Net weight: 2200 kg

Bell housing: SAE 00, 0 Flange: SAE 18, 21

Options/Comments: Mechanical or electrical remote control

Centre distance: 450 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 140KN

HCT1100

MAX.2154 HP at 1900RPM

Engine speed: 600~1900 RPM

Ratio	5.05	5.60	5.98	6.39	6.85	7.35	7.90	8.53	8.90
Rate(hp/rpm)	1.134			1.120	1.035	0.987	0.915	0.876

L×W×H: 1150×1350×1547 mm Net weight: 3000 kg

Bell housing: SAE 00, 0 Flange:

Options/Comments: Pneumatic (recommended) or electrical remote control

Centre distance: 500 mm

Recommend engine: CW6200 ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 150KN

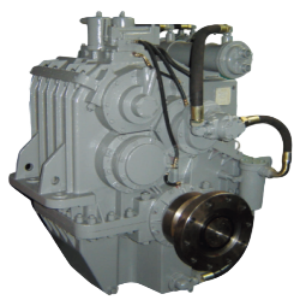

HC1200

MAX.2368 HP at 1900RPM

Engine speed: 600~1900 RPM

Ratio	1.60	2.03	2.48	2.50	2.96	3.18	3.33	3.55	3.79	4.06	4.20	4.47
Rate(hp/rpm)	1.246				1.18	1.073	0.92	0.872

L×W×H: 1082×1200×1130 mm Net weight: 2000 kg

Bell housing: SAE 00, 0 Flange:

Options/Comments: Mechanical remote operation

Centre distance: 380 mm

Recommend engine: CW8200ZC, 8210ZC ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 120KN

HC1200/1

MAX.2368 HP at 1900RPM

Engine speed: 600~1900 RPM

Ratio	3.70	3.74	3.95	4.14	4.45	5.00	5.25	5.58
Rate(hp/rpm)	1.246					1.116	0.931	0.871

L×W×H: 1096×1260×1270 mm Net weight: 2500 kg

Bell housing: SAE00, 0 Flange:

Options/Comments: Mechanical or electrical remote control

Centre distance: 450 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 140KN

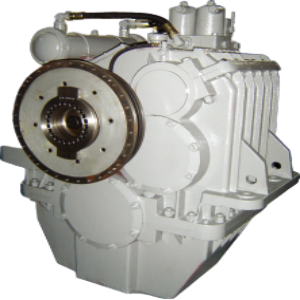

HCT1200

MAX.2368 HP at 1900RPM

Engine speed: 600~1900 RPM

Ratio	5.05	5.60	5.98	6.39	6.85	7.35	7.90
Rate(hp/rpm)	1.246

L×W×H: 1188×1350×1547 mm Net weight: 3050 kg

Bell housing: SAE 00, 0 Flange:

Options/Comments: Mechanical or electrical remote control

Centre distance: 500 mm

Recommend engine: CW8200ZC, XCW8200ZC ···

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 150KN

HCT1200/1

MAX.2368 HP at 1900RPM

Engine speed: 600~1900 RPM

Ratio	8.55	9.16	9.57	10.08	10.74	11.05	11.45	12.17	12.53	12.92	13.63	13.96	14.54
Rate(hp/rpm)	1.246				1.112	1.100	1.045	0.992	0.963	0.935	0.87	0.83	0.804

L×W×H: 1056×1430×1670 mm Net weight: 3600 kg

Bell housing: No Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 580 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 220KN

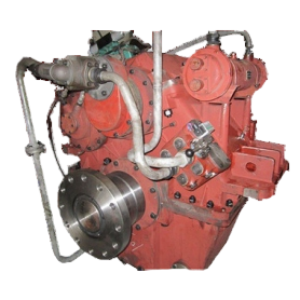

HCD1400

MAX.2624 HP at 1900RPM

Engine speed: 600~1900 RPM

Ratio	3.83	4.04	4.27	4.32	4.52	4.80	5.05	5.50	5.86
Rate(hp/rpm)	1.381						1.043

L×W×H: 1260×1380×1360 mm Net weight: 2800 kg

Bell housing: SAE 00, 0 Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 485 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 175KN

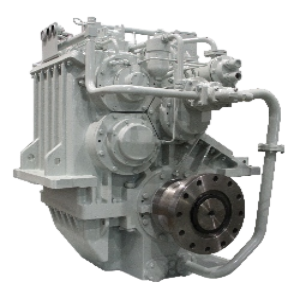

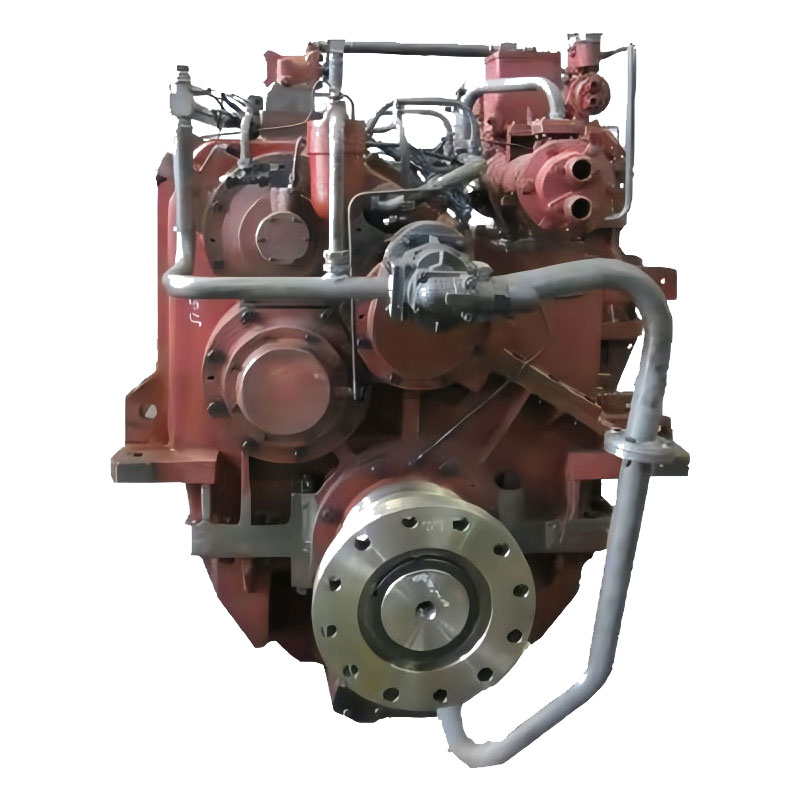

HCT1400

MAX.2624 HP at 1900RPM

Engine speed: 600~1900 RPM

Ratio	4.06	4.51	5.03	5.52	5.97	6.48	7.03	7.50	8.01	8.47	8.59	8.98	9.12	9.55
Rate(hp/rpm)	1.381							1.341	1.297	1.207	1.140

L×W×H: 1306×1380×1750 mm Net weight: 3800 kg

Bell housing: No Flange:

Options/Comments: Mechanical or electrical remote control

Centre distance: 550 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 220KN

HCT1400/2

MAX.2624 HP at 1900RPM

Engine speed: 600~1900 RPM

Ratio	10.07	11.42	12.05	12.62	13.41	14.19	14.59	15.10	15.90	16.30	17.20	17.98	18.44	19.07
Rate(hp/rpm)	1.381		1.336	1.281	1.216	1.160	1.089	0.939	0.903	0.872	0.85	0.83	0.80

L×W×H: 1279×1600×2100 mm Net weight: 5500 kg

Bell housing: No Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 722 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 220KN

HC1600

MAX.2680 HP at 1650RPM

Engine speed: 500~1650 RPM

Ratio	2.03	2.54	3.00	3.50	4.00
Rate(hp/rpm)	1.625

L×W×H: 1345×1500×1300 mm Net weight: 3000 kg

Bell housing: No Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 415 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 170KN

HCD1600

MAX.2680 HP at 1650RPM

Engine speed: 500~1650 RPM

Ratio	2.97	3.50	3.96	4.48	4.95	5.25
Rate(hp/rpm)	1.625					1.561

L×W×H: 1291×1620×1590 mm Net weight: 4000 kg

Bell housing: No Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 520 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 200KN

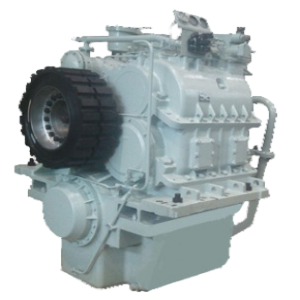

HCT1600

MAX.2680 HP at 1650RPM

Engine speed: 500~1650 RPM

Ratio	5.55	5.97	6.39	6.99	7.44	7.92	8.46	9.00	9.53
Rate(hp/rpm)	1.625							1.479	1.246

L×W×H: 1246×1500×1750 mm Net weight: 5000 kg

Bell housing: No Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 585 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 250KN

HCT1600/1

MAX.2680 HP at 1650RPM

Engine speed: 500~1650 RPM

Ratio	10.6	11.2	12	12.5	13.43	14.24	15.12	16.1
Rate(hp/rpm)	1.627				1.515	1.421	1.287	1.193

L×W×H: 1280×1704×2040 mm Net weight: 5500 kg

Bell housing: No Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 690 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 270KN

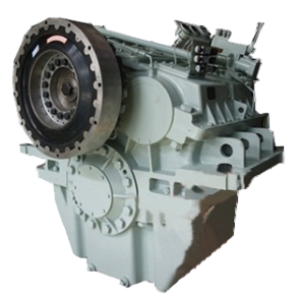

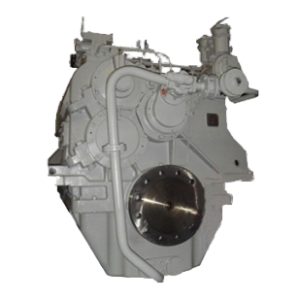

HC2000

MAX.2975 HP at 1500RPM

Engine speed: 600~1500 RPM

Ratio	2.28	2.52	3.13	3.52	3.91	4.40
Rate(hp/rpm)	1.985			1.904		1.649

L×W×H: 1600×1500×1400 mm Net weight: 3700 kg

Bell housing: No Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 450 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 190KN

HCD2000

MAX.2975 HP at 1500RPM

Engine speed: 600~1500 RPM

Ratio	3.00	3.58	3.96	4.43	4.95	5.26	5.43	5.75	6.05
Rate(hp/rpm)	1.983					1.903	1.796	1.648	1.595

L×W×H: 1600×1620×1645 mm Net weight: 4200 kg

Bell housing: No Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 560 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 220KN

HCT2000

MAX.2975 HP at 1500RPM

Engine speed: 600~1500 RPM

Ratio	5.19	5.49	5.94	6.58	7.01	7.48	7.76	8.00	8.57	8.84	9.43	10.04	11.00
Rate(hp/rpm)	1.983							1.903	1.796	1.648	1.621	1.340

L×W×H: 1284×1600×1835 mm Net weight: 5600 kg

Bell housing: SAE 0 Flange:

Options/Comments: Mechanical or electrical remote control

Centre distance: 625 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 270KN

HCT2000/1

MAX.2975 HP at 1500RPM

Engine speed: 600~1500 RPM

Ratio	7.94	8.57	9.06	9.59	10.16	10.40	11.11	11.49	12.08	12.42	12.97	13.51	13.92
Rate(hp/rpm)	1.985							1.918	1.877	1.671		1.582

L×W×H: 1500×1760×2010 mm Net weight: 7000 kg

Bell housing: No Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 690 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 340KN

HC2700

MAX.3845 HP at 1400RPM

Engine speed: 500-1400 RPM

Ratio	1.54	2.03	2.58	3.09	3.48	3.95	4.47
Rate(hp/rpm)	2.749					2.628	2.347

L×W×H: 1613×1670×1650 mm Net weight: 4700 kg

Bell housing: No Flange: 18, 21

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 490 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 270KN

HCD2700

MAX.3845 HP at 1400RPM

Engine speed: 500-1400 RPM

Ratio	3.65	4.04	4.50	5.05	5.48	6.11
Rate(hp/rpm)	2.749			2.628	2.628	2.279

L×W×H: 1400×1780×1530 mm Net weight: 6000 kg

Bell housing: No Flange: 18, 21

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 630 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 280KN

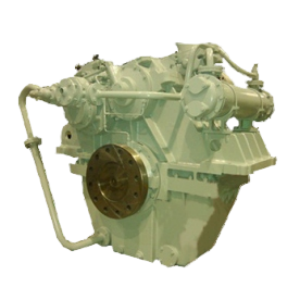

HCT2700

MAX.3845 HP at 1400RPM

Engine speed: 500-1400 RPM

Ratio	4.92	5.43	6.16	6.58	7.03	7.53	8.01	8.54	9.12	9.42	10.05
Rate(hp/rpm)	2.749					2.575	2.454	2.360	2.065

L×W×H: 1900×2000×1970 mm Net weight: 7200 kg

Bell housing: No Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 680 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 340KN

HCT2700-1

MAX.3845 HP at 1400RPM

Engine speed: 500-1400 RPM

Ratio	7.91	8.44	8.84	9.47	9.89	10.55	11.26	11.64	12.41
Rate(hp/rpm)	2.749			2.628	2.494	2.387	2.280

L×W×H: 1900×2250×1950 mm Net weight: 9000 kg

Bell housing: No Flange:

Options/Comments: Mechanical, Pneumatic or electrical remote control

Centre distance: 800 mm

Recommend engine:

Note: The "Rate" is based on high-flexible coupling.

Rated propeller thrust: 450KN

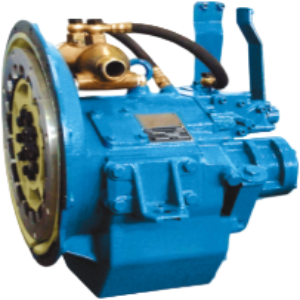

HC038A

MAX.120HP at 3200RPM

Engine speed: 1500-3200 RPM

Ratio	1.51	2.03	2.52	2.92	3.45
Rate(hp/rpm)	0.038		0.034	0.027

L×W×H: 392×480×480 mm Net weight: 70 kg

Bell housing: Match according to customer requirement Flange:

Options/Comments: Mechanical or electrical remote control

Centre distance: 115 mm

Recommend engine:

Rated propeller thrust: 9KN

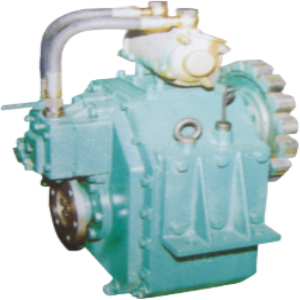

HC65

MAX.161 HP at 2500RPM

Engine speed: 1000-2500 RPM

Ratio	1.53	2.03	2.50	2.96
Rate(hp/rpm)	0.064			0.059

L×W×H: 351×380×544 mm Net weight: 130 kg

Bell housing: SAE 1, 2, 3 Flange: SAE 10, 11.5, 14

Centre distance: 142 mm

Recommend engine: 6BT5.9-M···

Rated propeller thrust: 14.7KN

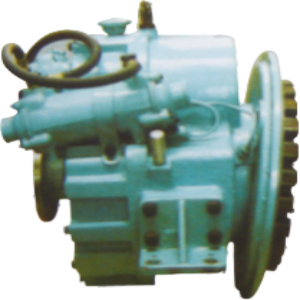

MV100A (7° inclination)

MAX.402 HP at 3000RPM

Engine speed: 1000-3000 RPM

Ratio	1.23	1.28	1.62	2.07	2.56	2.87
Rate(hp/rpm)	0.134			0.121		0.107

L×W×H: 485×508×580 mm Net weight: 220 kg

Bell housing: SAE 1, 2 Flange: SAE 11.5, 14

Options/Comments: Mechanical or electrical remote control

Centre distance: Input and output coaxiality

Recommend engine: NT-855-M240; MWM D234 V8···

Rated propeller thrust: 20KN

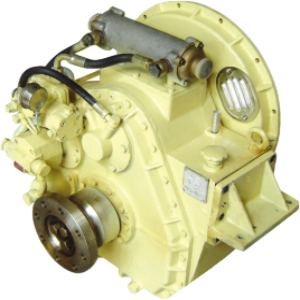

HCQ138

MAX.383 HP at 2600RPM

Engine speed: 1000-2600 RPM

Ratio	1.03	1.25	1.50	2.03	2.48	2.95
Rate(hp/rpm)	0.148					0.131

L×W×H: 504×619×616 mm Net weight: 240 kg

Bell housing: SAE 1, 2, 3 Flange: SAE 11.5, 14

Options/Comments: Mechanical or electrical remote control

Centre distance: 165 mm

Recommend engine: NT-855-M240; CAT3406···

Rated propeller thrust: 25KN

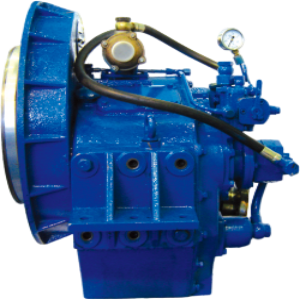

HCA138 (7° inclination)

MAX.383 HP at 2600RPM

Engine speed: 1000-2600 RPM

Ratio	1.10	1.28	1.5	2.03	2.52	2.95
Rate(hp/rpm)	0.148					0.114

L×W×H: 530×660×616 mm Net weight: 200 kg

Bell housing: SAE 1, 2 Flange: SAE 11.5, 14

Options/Comments: Mechanical or electrical remote control

Centre distance: 185 mm

Recommend engine: NT-855-M240; MWM D234 V8···

Rated propeller thrust: 25KN

HC200

MAX.434 HP at 2200RPM

Engine speed: 1000-2200 RPM

Ratio	1.48	2.00	2.28
Rate(hp/rpm)	0.197

L×W×H: 424×792×754 mm Net weight: 280 kg

Bell housing: SAE 1/2, 1 Flange: SAE 14, 16

Options/Comments: Mechanical or electrical remote operation

Centre distance: 190 mm

Recommend engine: NT-855-M240; CAT 3406 TA···

Rated propeller thrust: 27.5KN

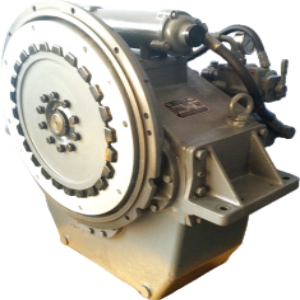

HC201

MAX.493 HP at 2500RPM

Engine speed: 1000-2500 RPM

Ratio	2.48	2.96	3.53
Rate(hp/rpm)	0.197		0.177

L×W×H: 556×691×735 mm Net weight: 350 kg

Bell housing: SAE 0, 1, 2 Flange: SAE 11.5, 14, 16, 18

Options/Comments: Mechanical or electrical remote control

Centre distance: 205 mm

Recommend engine: 6135ZLCA; NTA-855-M400···

Rated propeller thrust: 30KN

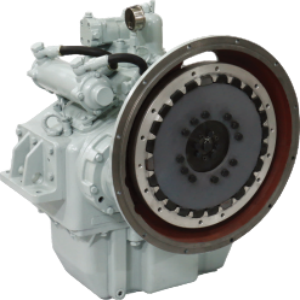

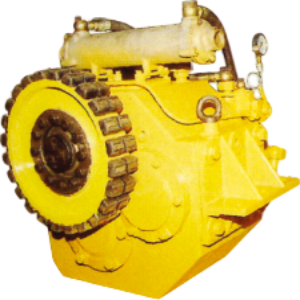

HCQ300

MAX.771 HP at 2300RPM

Engine speed: 1000-2300 RPM

Ratio	1.06	1.21	1.36	1.46	1.74	2.05	2.38	2.55
Rate(hp/rpm)	0.335						0.315	0.308

L×W×H: 630×521×680 mm Net weight: 370 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: Mechanical or electrical remote operation

Centre distance: 203 mm

Recommend engine: KTA19-M600; CAT3412T; TBD234V12···

Rated propeller thrust: 40KN

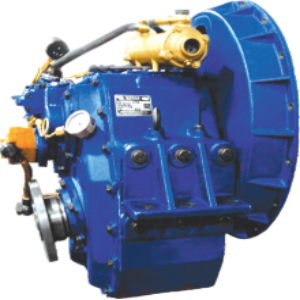

HCA300 (10° inclination)

MAX.771 HP at 2300RPM

Engine speed: 1000-2300 RPM

Ratio	1.52	1.96	2.50	2.95
Rate(hp/rpm)	0.335			0.315

L×W×H: 620×585×753 mm Net weight: 370 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: Mechanical or electrical remote control

Centre distance: 203 mm

Recommend engine: KTA19-M600; CAT3412T; TBD234V12···

Rated propeller thrust: 40KN

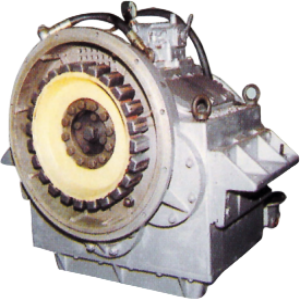

HCQ401

MAX.1020 HP at 2300RPM

Engine speed: 1000-2300 RPM

Ratio	1.00	1.12	1.25	1.41	1.50	1.76	2.04	2.50
Rate(hp/rpm)	0.44							0.39

L×W×H: 640×900×800 mm Net weight: 480 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: PTO device available; Mechanical or electrical remote control

Centre distance: 220 mm

Recommend engine: KT38-M800; TBD604BL6; CAT3412TA···

Rated propeller thrust: 50KN

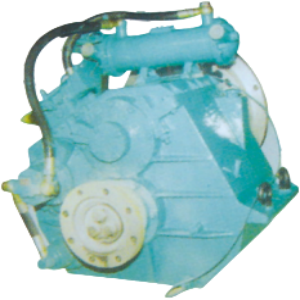

HCQ501

MAX.1242 HP at 2300RPM

Engine speed: 1000-2300 RPM

Ratio	1.03	1.46	1.56	1.88	2.00	2.45
Rate(hp/rpm)	0.54					0.51

L×W×H: 742×856×950 mm Net weight: 560 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: Mechanical or electrical remote control

Centre distance: 235 mm

Recommend engine: KTA38-M940; CAT3508B; TBD234V16···

Rated propeller thrust: 55KN

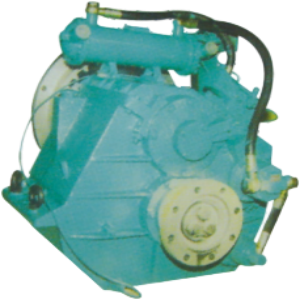

HCQ502

MAX.1242 HP at 2300RPM

Engine speed: 1000-2300 RPM

Ratio	2.71	2.95
Rate(hp/rpm)	0.54

L×W×H: 742×856×980 mm Net weight: 700 kg

Bell housing: SAE 0, 1 Flange: SAE 14, 16, 18

Options/Comments: Mechanical or electrical remote control

Centre distance: 264 mm

Recommend engine: KTA38-M940; CAT3508TA; TBD234V16···

Rated propeller thrust: 60KN

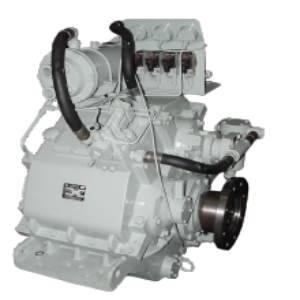

HCQ700

MAX.1857 HP at 2500RPM

Engine speed: 1000-2500 RPM

Ratio	1.30	1.51	1.75	2.00	2.25	2.50	2.78	2.96
Rate(hp/rpm)	0.74					0.69		0.66

L×W×H: 898×1104×1066 mm Net weight: 980 kg

Bell housing: SAE 0 Flange: SAE 16, 18

Options/Comments: Mechanical or electrical remote operation

Centre distance: 290 mm

Recommend engine: KTA38-M2; CAT3508TA···

Rated propeller thrust: 90KN

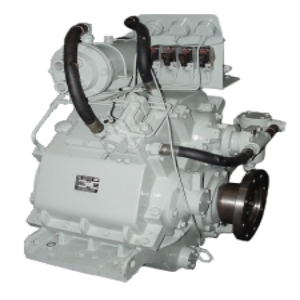

HCQ701

MAX.1857 HP at 2500RPM

Engine speed: 1000-2500 RPM

Ratio	2.90	3.48	3.62
Rate(hp/rpm)	0.74	0.69	0.66

L×W×H: 868×1104×1146 mm Net weight:

Bell housing: SAE 0 Flange: SAE 18

Options/Comments: Mechanical, electrical remote control

Centre distance: 340 mm

Recommend engine:

Rated propeller thrust: 95KN

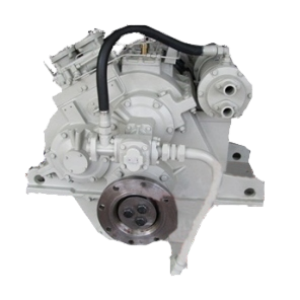

HCQ1000

MAX.2265 HP at 2300RPM

Engine speed: 1000-2300 RPM

Ratio	1.18	2.84
Rate(hp/rpm)	0.985	0.87

L×W×H: 994×1104×985 mm Net weight: 1100 kg

Bell housing: SAE 0 Flange: SAE 16, 18

Options/Comments: Mechanical or electrical remote control

Centre distance: 310 mm

Recommend engine:

Rated propeller thrust: 100KN

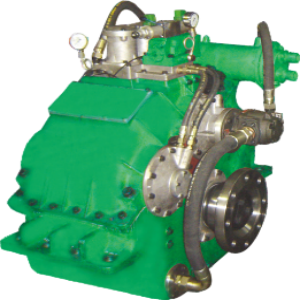

HCQ1400

MAX.2900 HP at 2100RPM

Engine speed: 1000-2100 RPM

Ratio	1.52	2.00	2.48	3.00
Rate(hp/rpm)	1.38			1.21

L×W×H: 938×1210×1027 mm Net weight: 1430 kg

Bell housing: Flange: SAE

Options/Comments: Mechanical or electrical remote operation

Centre distance: 340 mm

Recommend engine: CAT3512TA···

Rated propeller thrust: 110KN

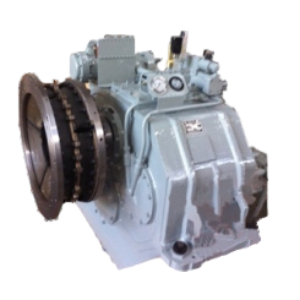

HCA1400 (7° inclination)

MAX.2475 HP at 2100RPM

Engine speed: 1600-2100 RPM

Ratio	2.93
Rate(hp/rpm)	1.18

L×W×H: 826×1300×1250 mm Net weight:

Bell housing: special equipment Flange: special equipment

Options/Comments: Mechanical, electrical remote control

Centre distance: 340 mm

Recommend engine:

Rated propeller thrust: 110KN

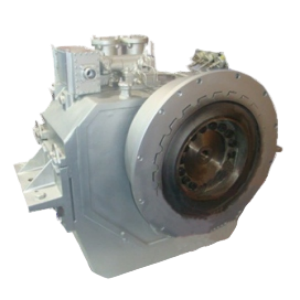

HCM1400

MAX.2900 HP at 2100RPM

Engine speed: 1000-2100 RPM

Ratio	1.48	2.02	2.55	3.07
Rate(hp/rpm)	1.3825			1.1934

L×W×H: 1023×1000×1118 mm Net weight: 950 kg

Bell housing: SAE 00 0 Flange: SAE 21 18

Options/Comments: Mechanical, electrical remote control

Centre distance: 340 mm

Recommend engine:

Rated propeller thrust: 110KN

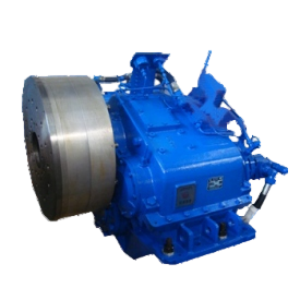

HCQ1600

MAX.3389 HP at 2100RPM

Engine speed: 1000-2100 RPM

Ratio	1.51	1.97	2.48	2.76
Rate(hp/rpm)	1.614			1.34

L×W×H: 1106×1190×1056 mm Net weight: 1500 kg

Bell housing: No Flange: SAE 21 18

Options/Comments: Mechanical, electrical remote control

Centre distance: 340 mm

Recommend engine:

Rated propeller thrust: 120KN

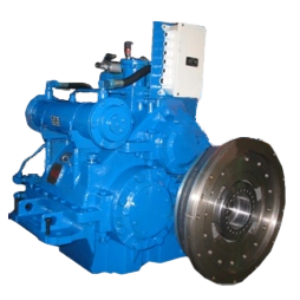

HCQH1600

MAX.3389 HP at 2100RPM

Engine speed: 1600-1900 RPM

Ratio	2.48
Rate(hp/rpm)	1.614

L×W×H: 1035×1110×1038 mm Net weight: 1500 kg

Bell housing: No Flange: SAE 21

Options/Comments: Mechanical, electrical remote control

Centre distance: 340 mm

Recommend engine:

Rated propeller thrust: 120KN

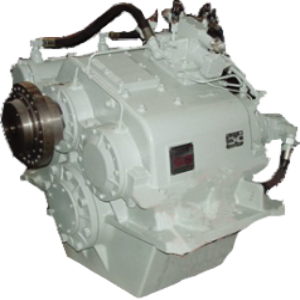

HCQH1601

MAX.3389 HP at 2100RPM

Engine speed: 1600-2100 RPM

Ratio	3.04	3.24
Rate(hp/rpm)	1.614	1.34

L×W×H: 1106×1230×1180 mm Net weight: 1550 kg

Bell housing: No Flange: SAE 21 18

Options/Comments: Mechanical, electrical remote control

Centre distance: 370 mm

Recommend engine:

Rated propeller thrust: 120KN

Product Categories

Service & Support

Main Methods of Matching Ship Propellers with Diesel Engines

Technical Advantages of Outboard Motors in Inflatable Boat Propulsion

Cummins Container Generator Powers African Project with Efficient and Stable Electricity Supply
