DIesel Engine Driven Fire Pump

    Horizontal single-stage centrifugal fire pump designed for seawater applications. Robust construction and high performance for demanding fire protection systems.

    ●
    High Capacity 3600 m³/h flow rate for large-scale fire protection.
    ●
    High Pump Head 140m pump head handles high-pressure fire fighting.
    ●
    Premium Materials Nodular cast iron, Ni-Al bronze, stainless steel shaft.
    ●
    CCS Certified Certified by CCS and other major classification societies.
    ●
    Seawater Compatible Built for harsh marine and seawater environments.
    ●
    Diesel Engine Driven Reliable diesel power for independent emergency operation.
    Fire Fighting Systems Marine Fire Pumps Industrial Protection Harbor Facilities Seawater Applications CCS Certified
Request Quote Contact Us

Description

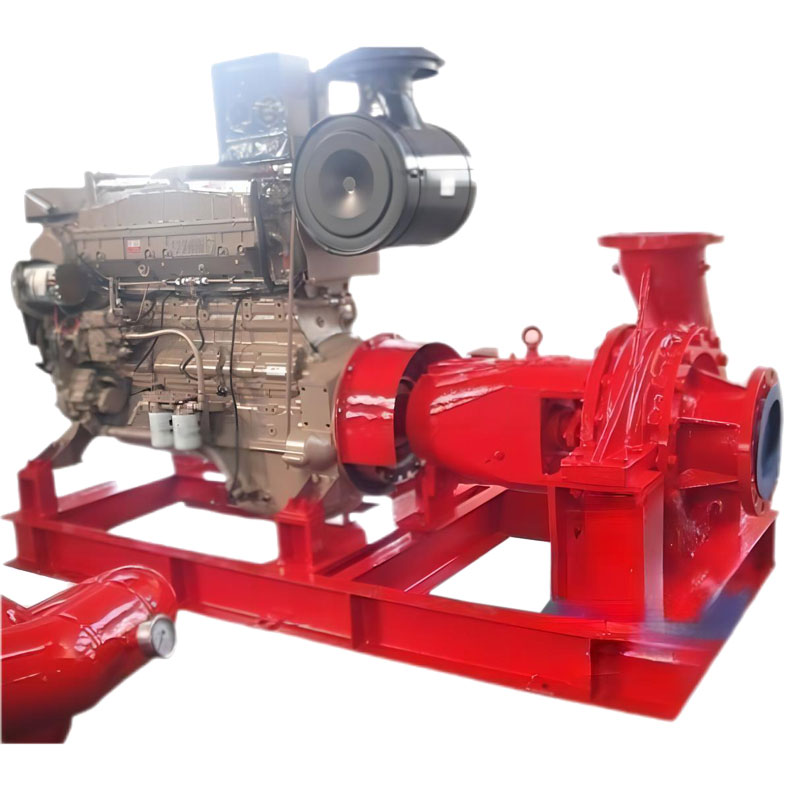

The SSCXB500-400 is a heavy-duty diesel engine driven centrifugal pump engineered for high-performance seawater pumping in demanding environments.

Type: Horizontal single stage side inlet top outlet centrifugal pump

Medium: Seawater

Capacity: 3600 m3/h

Pump Head: 140m

Pump Speed: 1200 r/min

Power Absorbed: 1890kw

Dimension of Pump Inlet: DN500

Dimension of Pump Outlet: DN400

Material

Pump shell: Nodular cast iron

Impeller: Ni-Al Bronze

Shaft: Stainless steel

Shaft Sealing: Soft sealing

DIesel Engine Driven Fire Pump Certificate: CCS etc.
